EDS

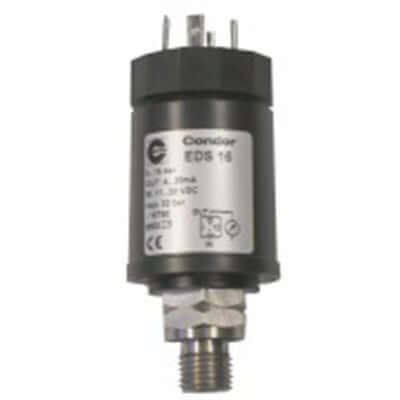

The EDS Pressure switch from Condor USA.

Pressure Connection

Output Signal

Dropdown Menu

Sort by

Permissible operating voltage range	= ± 10 %
Operating voltage influence	= < 0,1 %
Duty factor (ED)	= 100%
Permissible ambient and media temperature	= 15°C bis +80°C
Permissible ambient humidity	= 10 % bis 90 %
Permissible storage temperature	= -40°C bis +80°C
Clearance and creepage distances	= VDE 0110
Working position	= any position
Power consumption	= max. 1 VA
Enclosure-protection	= max. IP 65
Terminals	= Flachstecker 4,5 mm
Cross section	= EDS-ST 1,5 mm²
Weight	= 150 g
