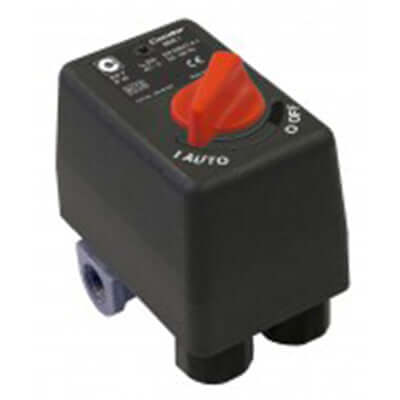

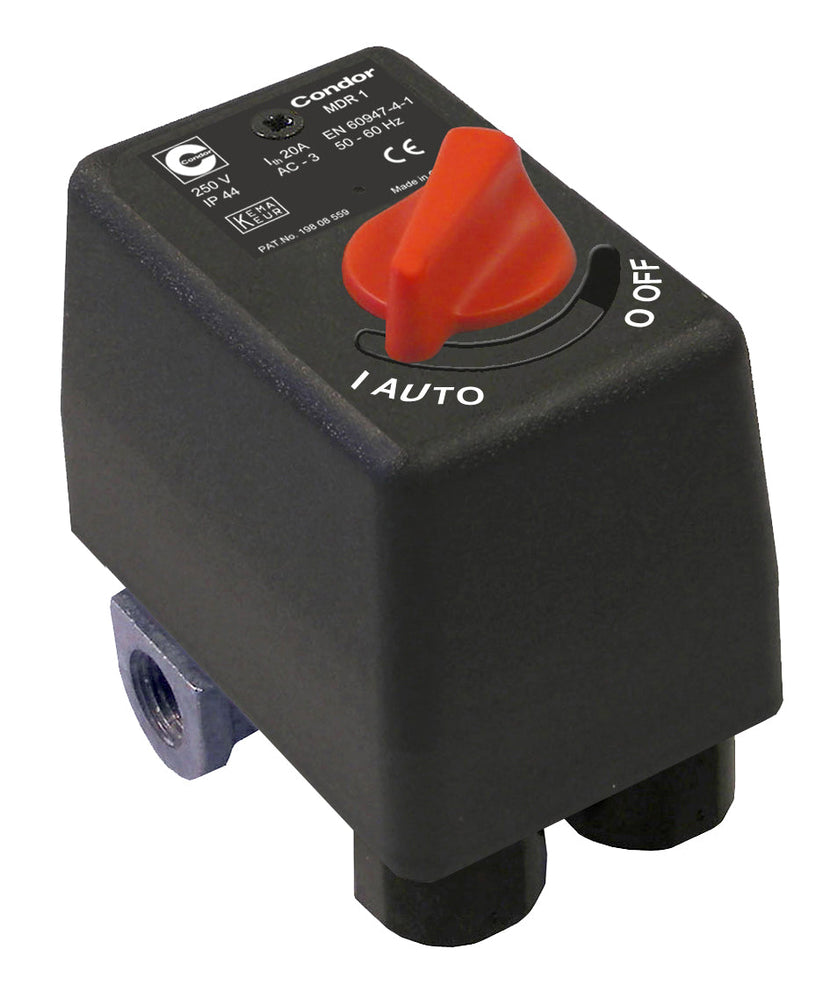

The MDR1 (Euro) Pressure switch from Condor USA.
| Rated insulation voltage (Ui) | = 500 V |
| Motor switching capacity (AC 3) [Ue=240 V (1~)] | = 4,0 kW |
| Electrical life (AC 3) [Cycles] | = > 1 x 105 |
| Mechanical life (Cycles) | = > 5 x 105 |
| Max. electrical cycles (Cycles/h) | = 120 |
| Max. mechanical cycles (Cycles/h) | = 600 |
| Rated operational current Ie (at 240 V AC) | = 20 A |
| Bursting strength (Pz) | = > 35 bar |
| Permissible medium temperature (Air) | = -5...+80°C |
| Permissible medium temperature (Water) | = +70°C |
| Degree of Protection acc. to EN 60529 | = IP 44 |
| Conductor cross-section 1 (fine stranded cable 1 x / 2 x) | = 2.5 / 2.5 mm² |
| Conductor cross-section 1 (rigid cable 1 x / 2 x) | = 2.5 / 2.5 mm² |
