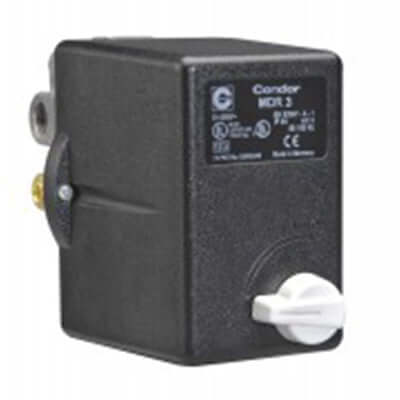

The MDR3 (USA) Pressure switch from Condor USA.
Diaphragm Media Resistance MDR3 (USA)
Acetylene, Butane, Diesel, Natural gas, Petrolium, Ethylene glycol, Glycerol, Fuel oil, Urine, Carbon dioxide, Carbonic acid, Air, Mineral oils, Vegetable oil, Propane, Silicon oil, Nitrogen, Synthetic oils, Water, Distilled water, Hydrogen, Sea water, Hydrogen, Water steam
| Rated insulation voltage (Ui) | = 690 V |
| Motor switching capacity (UL 508, CSA 22.2) [Ue=120 V (1~)] | = 2 HP |
| Motor switching capacity (AC3) [Ue=240 V (1~)] | = 5,5 kW |
| Motor switching capacity (UL 508, CSA 22.2) [Ue=240 V (1~)] | = 3 HP |
| Motor switching capacity (AC 3) [Ue=240 V (3~)] | = 5,5 kW |
| Motor switching capacity (UL 508, CSA 22.2) [Ue=240 V (3~)] | = 7,5 HP |
| Motor switching capacity (AC 3) [Ue=400 V (3~)] | = 7,5/11* kW |
| Motor switching capacity (UL 508, CSA 22.2) [Ue=480 V (3~)] | = 15 HP |
| Motor switching capacity (AC 3) [Ue=500 V (3~)] | = 7,5/11* kW |
| Motor switching capacity (UL 508, CSA 22.2) [Ue=600 V (3~)] | = 20 HP |
| Motor switching capacity (AC 3) [Ue=690 V (3~)] | = 7,5/15* kW |
Stuck locating your part number? Click the button below for a guide
23474661 w/ Special 1/2" Custom Manifold
2023738468, 70/90 or 70/100 psi
32HC3HEXJJ
32HC3HGXJJ
32AM3XXXWW (4.5-6 bar)
31YB3XXXWW
31YD3XXXWW
32YK3XXXWW
31YH3XXXWW
32AM3XXXWW (13-16 bar)
31AB3XXXWW (13-16 bar)
32UM3XXXWW
32YK3XEXWW
32YK3XJXWW
RA3J, 220-240V/60Hz
32HM3GDXFF
32JMXXXXWB
32AMXXXXFF (7.3-9.3 bar)
32JB3DHXJK
32EH3HEXJK
32EH3HGXJK
