MDR43

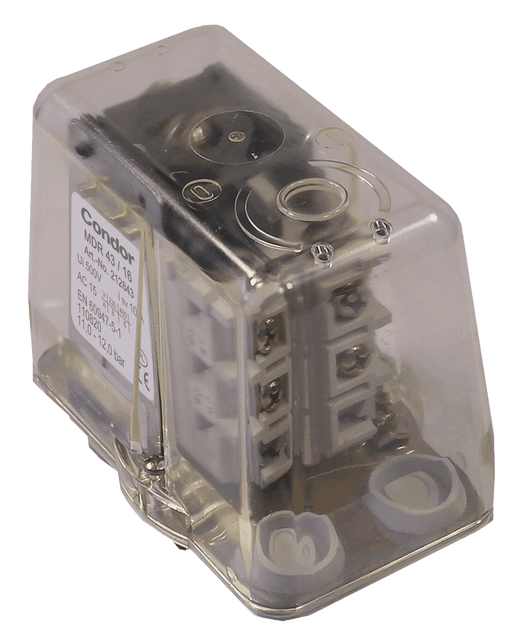

The MDR43 Pressure switch from Condor USA.

Max. cut-out pressure = 16 bar
Transparent cover
1 N.C. + 1 N.O.
Acc. to EN 60947
Flange = Die-cast aluminum

Sort by

212782

Condor USA

Part Number: 212782

Weight: 450.0 g

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

212799

Condor USA

Part Number: 212799

Weight: 450.0 g

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

212805

Condor USA

Part Number: 212805

Weight: 450.0 g

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

212812

Condor USA

Part Number: 212812

Weight: 450.0 g

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

212829

Condor USA

Part Number: 212829

Weight: 450.0 g

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

212836

Condor USA

Part Number: 212836

Weight: 450.0 g

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

212843

Condor USA

Part Number: 212843

Weight: 450.0 g

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

229179

Condor USA

Part Number: 229179

Weight: 450.0 g

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

229322

Condor USA

Part Number: 229322

Weight: 450.0 g

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

229339

Condor USA

Part Number: 229339

Weight: 450.0 g

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

230236

Condor USA

Part Number: 230236

Weight: 450.0 g

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

$98.16 - $98.16

$98.16

294870

Condor USA

Part Number: 294870

Weight: 1.0 g

$10.33 - $10.33

$10.33

$10.33 - $10.33

$10.33

$10.33 - $10.33

$10.33

$10.33 - $10.33

$10.33

3.3172.0001

Condor USA

Part Number: 3.3172.0001

Weight: 1.0 g

$10.33 - $10.33

$10.33

$10.33 - $10.33

$10.33

$10.33 - $10.33

$10.33

$10.33 - $10.33

$10.33

Rated insulation voltage (Ui)	= 500 V
Rated insulation voltage Ue (AC 15)	= 250 V
Rated insulation voltage Ithe (AC 15)	= 8A
Rated insulation voltage Ie (max.)	= 10A
Mechanical life (AC 15) [Cycles]	= > 1,5 x 10⁵
Mechanical life (cycles)	= > 1 x 10⁶
Max. electrical cycles (cycles/h)	= 120
Max. mechanical cycles (cycles/h)	= 600
Bursting strength (Pz)	= > 60 bar
Permissible medium temperature Air	= -30 ... +80 °C
Permissible medium temperature Water	= +80 °C
Conductor cross-section 1 .. flexible cable 1 x / 2 x	= 2.5 / 2.5mm²
Conductor cross-section 1 (rigid cable 1 x / 2 x)	= 2.5 / 2.5mm²
