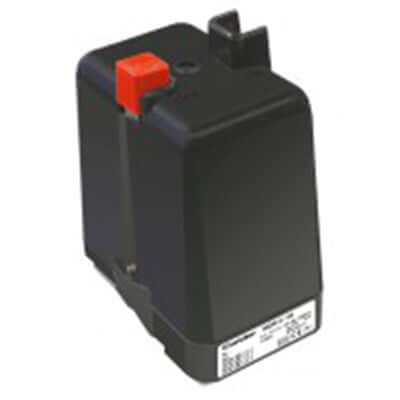

The MDR5 Pressure switch from Condor USA.
Diaphragm Media Resistance MDR5
Acetylene, Gasoline, Butane, Diesel, Natural gas, Petroleum, Ethylene glycol, Glycerol, Fuel oil, Urine, Carbon dioxide, Carbonic acid, Air, Mineral oils, Vegetable oil, Propane, Silicon oil, Nitrogen, Synthetic oils, Water, Distilled water, Hydrogen, Sea water, Water steam
| Rated insulation voltage (Ui) | = 500 V |
| Motor switching capacity (AC 3) [Ue=240 V (1~)] | = 2.5 kW |
| Motor switching capacity (AC 3) [Ue=230 V (3~)] | = 4.0 kW |
| Motor switching capacity (AC 3) [Ue=400 V (3~)] | = 5.5 kW |
| Motor switching capacity (AC 3) [Ue=500 V (3~)] | = 4.0 kW |
| Electrical life (AC 3) (cycles) | = > 1 x 105 |
| Mechanical life (cycles) | = > 5 x 105 |
| Maximum electrical cycles (cycles/h) | = 120 |
| Maximum mechanical cycles (cycles/h) | = 600 |
| Rated operational current Ie (at 400 V AC 3 / 500 V AC 3) | = 16 A / 12 A |
| Bursting strength Pz (up to 16 bar) | = > 40 bar |
| Bursting strength Pz (up to 45 bar) | = > 60 bar |
| Permissible medium temperature (air) | = -5...+80°C |
| Permissible medium temperature (water) | = +80°C |
| Degree of Protection acc. to EN 60529 | = IP 54 / IP 65 |
| Conductor cross-section 1 (fine stranded cable 1 x / 2 x) | = 2.5 / 2.5 mm² |
| Conductor cross-section 1 (rigid cable 1 x / 2 x) | = 4 / 4 mm² |
