PSN

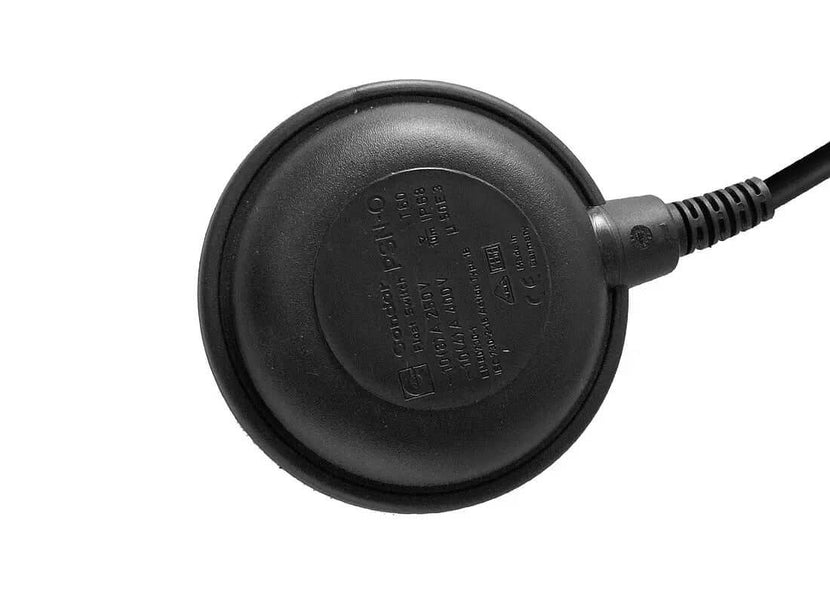

The PSN Pressure switch from Condor USA.

  • neoprene insulated lead
  • protective Conductor Connection acc. to VDE 0631
  • Part 1 protection class 1 resp. EN 60730-1
    the inner chamber with the switch mechanism and lead are seamlessly enclosed by isolating polypropylene.
  • motors with a switching capacity of up to 1.1 kW (at 250 V~) may be switched directly.
  • high quality HR-Foam floating body
  • KLS ball guiding system

Resistance

  • Formic acid (hydrous 10%), Gasoline (normal), Diesel, Formaldehyde (hydrous 40%), Glycerine, Fuel oil, Lactic acid (hydrous 10%), Phosphoric acid (hydrous 10%), Nitric acid (hydrous 10%), Sulfuric acid (hydrous 35%), Washing powder

Limited Resistance

  • Acetic acid (hydrous 10%), Nitric acid (hydrous 10%), Chlorinated water, Hydrogen peroxide
Technical Data
Rated operational voltage Ue (AC) for PSN-O/F/X = 250 V ~ 400 V ~
Rated operational voltage Ue (AC) for PSN...+ST… = 250 V ~
Rated operational voltage Ue (AC) for PSN-X SP = max. 30 V ~
Rated operational current Ie (AC) for PSN-O/F/X = 10(8) A (250 V ~) / 10(4) A (400 V ~)
Rated operational current Ie (AC) for PSN...+ST… = 10(8) A
Rated operational current Ie (AC) for PSN-X SP = max. 400 mA
Contact rating = 1,1 kW
Max. cycles (Cycles 50 E3) = ≥ 50.000
Temperature resistance (cable VDE 282 T 4 12/95) = 60 °C
Temperature resistance (body) = 85 °C
Temperature resistance gem. VDE (PSN-O / PSN-F *) = 10 A – T 45 °C
Temperature resistance gem. VDE (PSN-O / PSN-F) = 8 A – T 50 °C
Temperature resistance gem. VDE (PSN-O / PSN-F) = 6 A – T 60 °C
Temperature resistance gem. VDE (PSN-X SP) = T 60 °C
Protection watertight, depth 10 m = IP 68
Wire cross sections (VDE 0631 T 1 01/96) = 3 x 1 mm²
Lead (black) = H 07 RN-F
Rated operational voltage Ue = ≤ 30 V-DC
Rated operational current Ie = 11 mA (R=2,7k) / 2,4 mA (R=12,7k)
Rated switching capacity* = 250 V AC, 1 mA
Thermal switching capacity = 250 V AC, 6 A
Max. cycles (cycles 50 E3) = ≥ 50.000
Temperature resistance (Cable VDE 282 T 4 12/95) = 60 °C
Temperature resistance (body) = 85 °C
Protection (watertight, depth 10 m) = IP 68
Wire cross sections VDE 0631 T 1 01/96 = 3 x 1 mm²
Lead - black = H 07 RN-F
